DIY Self-Watering Bucket Planter (5 Gallon, About $14)
We may receive a commission on purchases made from links.
A DIY self-watering bucket planter uses two 5 gallon buckets, a fill tube, and a wicking cup to feed roots for days. Build one in about 30 minutes with a drill.
Quick answer

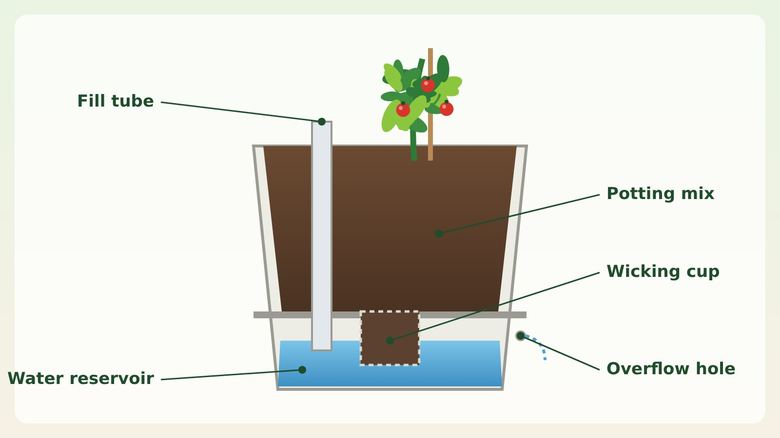

A self-watering bucket planter is two 5-gallon buckets nested together. The bottom bucket holds about half a gallon to a gallon of water. The top bucket holds potting mix and sits just above the water, with a wicking cup that dips into the reservoir. Roots pull moisture up through the mix as they need it. Add a 1-inch fill tube so you can top up without lifting anything, and drill one 1/4-inch overflow hole so rain cannot flood the roots. Expect to spend about $14 and 30 minutes. Plan on refilling every 3 to 5 days for a pepper and every 2 to 3 days for a tomato in July heat.
What you need
Two food-grade 5 gallon buckets (recycling triangle 2 or 5), a 3-inch plastic cup or net pot, a 12-inch length of 1-inch PVC pipe, a drill with 1/4-inch and 3-inch hole saw bits (or a utility knife), and 14 quarts of moist potting mix.
Most nested buckets leave a gap of 1 to 2 inches between the two bottoms. That gap is your reservoir. If your buckets nest tight against each other, rest the top bucket on three 2-inch blocks cut from a spare pipe.
Use new buckets or buckets that held food. Never use a pail that held paint, solvent, or pool chemicals. Light colors keep roots cooler than black.
How the wick works
Water climbs through damp potting mix by capillary action, the same way a paper towel pulls up a spill. The wicking cup is a column of mix that connects the dry-looking planting bucket to the water below. If the column breaks, the plant gets no water. Pack the cup firmly, and keep the mix moist the day you build it.
Do not skip the overflow hole. Without it, a heavy rain fills the reservoir to the brim and the roots sit in standing water. Drill it in the outer bucket, just under the bottom of the inner bucket.
This is not your problem if
- You grow in raised beds or in-ground and already have deep, steady soil moisture.
- Your plants are succulents, rosemary, or lavender. They want to dry out between waterings.
- You water by hand every morning and enjoy it. A bucket on a tray does the same job.
- You need to grow crops larger than a 5-gallon root zone, such as full-size squash or corn.
Step-by-step: build one planter
- Wash both buckets with dish soap and rinse. Check that the inner bucket sits in the outer with a 1 to 2 inch gap.
- Cut or drill a 3-inch hole in the bottom of the inner bucket, 2 inches from the edge. Trim the bottom off the plastic cup and drill 6 small holes in its sides. Seat it in the hole so it hangs below the bucket floor.
- Drill a 1-inch hole beside the cup for the fill tube. Slide in the PVC pipe so the bottom end touches the outer bucket and the top end sticks out 1 inch above the future soil line. Cut the bottom at an angle so it never seals flat.
- Drill 10 to 12 quarter-inch holes in the floor of the inner bucket so air reaches the roots and extra water drains down.
- Drill one 1/4-inch overflow hole in the outer bucket, just below the floor of the inner bucket.
- Pack the wicking cup tight with damp potting mix, then fill the bucket to 1 inch below the rim.
- Plant one tomato or pepper. Water from the top for the first week, then fill the reservoir through the tube until water drips from the overflow hole.
Cost check: two buckets run about $8, half a bag of potting mix about $3, the pipe about $2, and the cup about $1. The drill and bits come from your toolbox. Total is about $14 per planter.

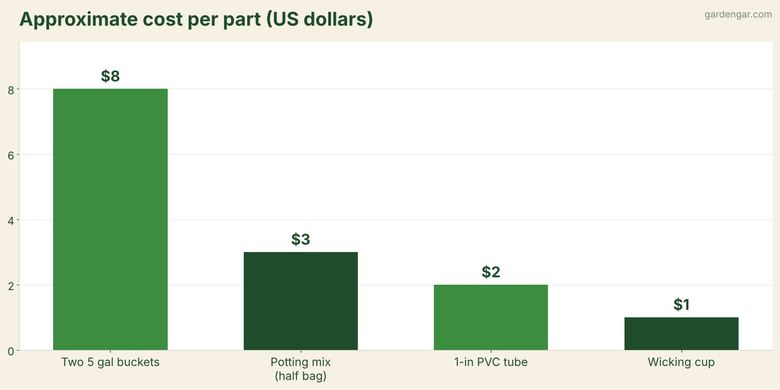

Parts list and cost
Prices are typical U.S. big-box store prices and vary by region.
| Part | Size | Qty | Approx. cost |
|---|---|---|---|
| Food-grade buckets | 5 gallon | 2 | $8 |
| Potting mix | 14 quarts | Half a bag | $3 |
| PVC pipe | 1 inch x 12 inch | 1 | $2 |
| Plastic cup or net pot | 3 inch | 1 | $1 |
Which plants work best
One determinate tomato, one pepper, one eggplant, or a cluster of leaf lettuce does well. Bush beans (3 to 4 per bucket) also work. Give fruiting crops 6 or more hours of sun and stake or cage them on planting day.
Feed with a half-strength liquid fertilizer every 2 weeks once the plant sets flowers. Water in the reservoir does not carry fertilizer up evenly, so mix a slow-release feed into the top 3 inches of soil.
Myths that waste time
Myth: you need a special kit to build a self-watering planter. Two buckets, a cup, and a pipe do the same job for about $14.
Myth: a self-watering planter never needs checking. The reservoir still runs dry. A tomato in 90°F heat can empty it in 2 days.
Myth: garden soil works fine in the top bucket. Garden soil compacts and breaks the wick. Use a light potting mix.
Myth: you can fill the bucket to the rim with water for a longer trip. Standing water above the overflow hole drowns roots. Stay below it.
Do this today / this week
- Buy two food-grade 5 gallon buckets, a bag of potting mix, a 1-inch PVC pipe, and a 3-inch cup.
- Test-fit the buckets and measure the gap between the two floors.
- Cut the wicking hole and fill-tube hole, then drill the drain holes and the overflow hole.
- Fill the cup and bucket with damp potting mix and plant one starter plant.
- Water from the top for 7 days, then switch to filling the reservoir.
- Mark your phone calendar to check the water level every 2 days for the first month.
Frequently asked questions
How long does a DIY self-watering bucket last between refills?
A pepper often goes 3 to 5 days in mild weather. A tomato in 90°F heat may need water every 2 to 3 days. Use the overflow hole as your guide: fill until water drips out.
Can I use a bucket that held food?
Yes, if it is food-grade (recycling triangle 2 or 5) and washed well. Never use buckets that held chemicals, paint, or solvents.
Why is my plant wilting even with a full reservoir?
The wicking cup may have dried out or lost contact with the water. Water from the top for a few days and repack the cup with damp mix.
Do I need to fertilize a self-watering planter?
Yes. Plants still use nutrients. Add slow-release fertilizer to the top 3 inches of mix at planting, then liquid feed at half strength every 2 weeks.
Key takeaways
- Two buckets, a wicking cup, a fill tube, and an overflow hole make a working self-watering planter.
- Build time is about 30 minutes and cost is about $14.
- Use potting mix, not garden soil, so the wick keeps working.
- Top-water for the first week, then fill the reservoir until water drips from the overflow hole.
